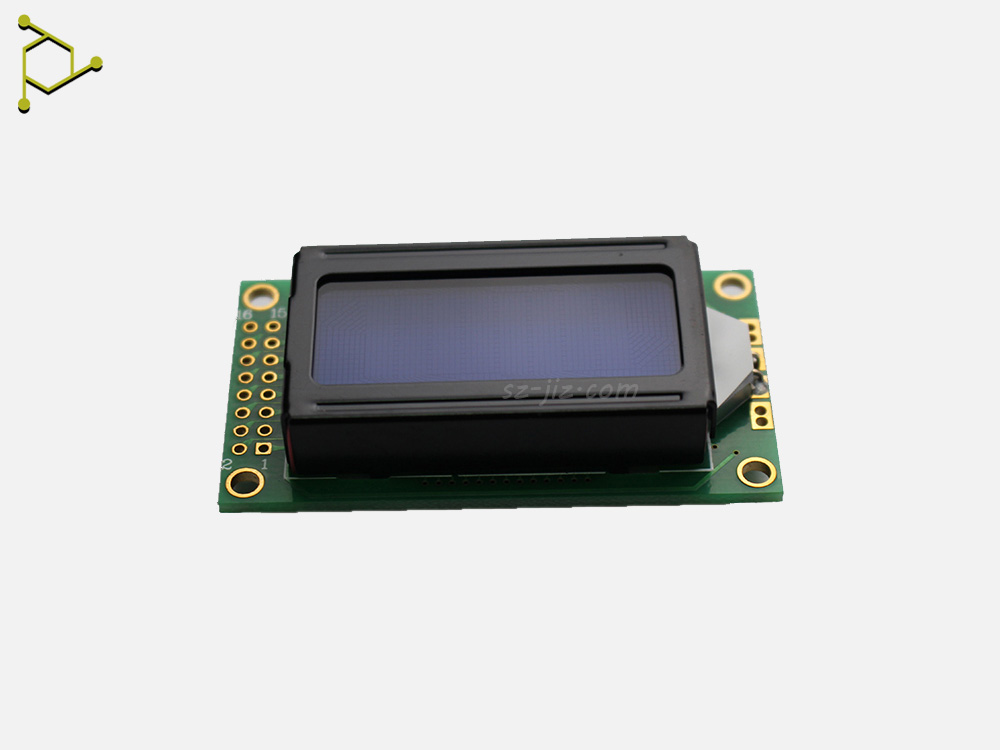

jz0802A
2.7 to 5.5V
4-bit or 8-bit MPU interface enabled
5 x 8 dot matrix possible
size 58 x 32 mm
电话 0755-23300460;手机 18988759612(张总)
Description
The Jz0802a dot-matrix liquid crystal display controller and driver LSI displays alphanumeric,Japanese kana characters, and symbols. It can beconfigured to drive a dot-matrix liquid crystal display under the control of a 4- or 8-bit microprocessor.Since all the functions such as display RAM,character generator, and liquid crystal driver, required for driving a dot-matrix liquid crystal display are internally provided on one chip, a minimal system can be interfaced with this controller/driver.
The Jz0802a character generator ROM is extended to generate 208 5 x 8 dot character fonts and 32 5 x 11 dot character fonts for a total of 240 different character fonts. The low power supply (2.7V to 5.5V) of the Jz0802a is suitable for any portable battery-driven product requiring low power dissipation.
