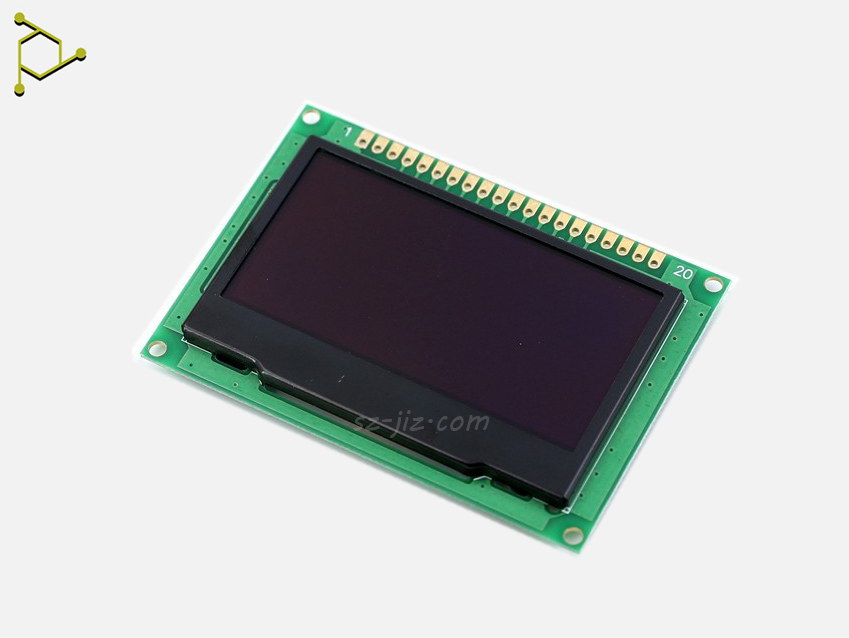

Jz242
2.7 to 5.5V
Fast 8-bit MPU interface compatible with 80-and 68-family microcomputers
built-in display data RAM…
size xx x xx mm
电话 0755-23300460;手机 18988759612(张总)
Description
The jz242 dot matrix LCD driver is designed for the display of characters and graphics. The drivers generate LCD drive signals derived from bit mapped data stored in an internal RAM.
The drivers are available in two configurations. Fast 8-bit MPU interface compatible with 80-and 68-family microcomputers
The jz242 incorporate innovative circuit design strategies to achieve very low power dissipation at a wide range of operating voltages.
These features give the designer a flexible means of implementing small to medium size LCD displays for compact, low power systems.
